DRECO PRECISION 400-PSD

DRECO Precision Land Rig

Make - DRECO Precision

Year built/Rebuilt - 1997/2006

Estimated Drilling Depth - 7,200ft

Estimated Rig Move Loads - 32

Estimated Camp Move Loads - 58

Rated HP - 400

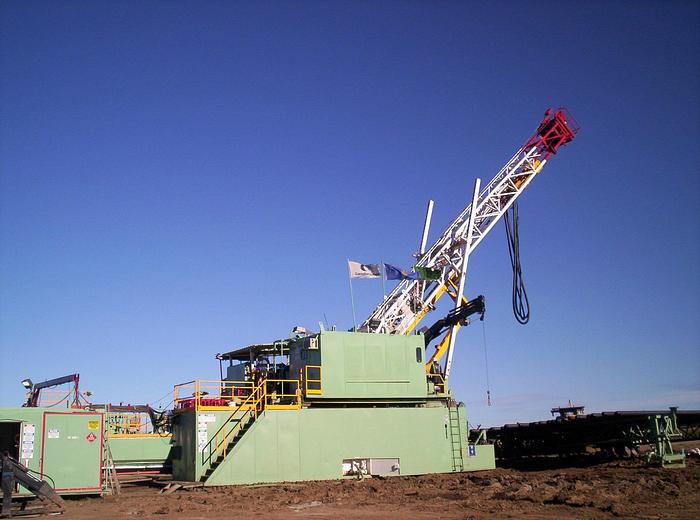

MAST

Height - 75.00ft

Static Hook Load capacity - 250,000 Ibs

Mast Racking Capacity - N/A

SUBSTRUCTURE

Style - Box Type (Space Below Trailer)

Height - 13.50 ft

Clear Height - 9.20 ft

Casing Capacity - 200,000 Ibs

Maximum Setback Load (Ibs) - N/A

Drawworks

Make - DRECO

Model - 400-PSD

Input power - 1 ea Caterpillar

Model - C 15

Break Type-Band or Disc. - Band

Drilling Line Size - 7/8"

Auxillary Brake - Eaton 224 WCB

TOP DRIVE / POWER SWIVEL

Make - Rostel Industries

Model - R150-30SL

Power - 190 kW (250 hp)

Capacity - 150 Ton

Maximum designed torque - 40,700 N.m (30,000 ft-lbs.)

Torque condition - high 11,600 ft-lb @

5000 psi (hydraulic Pressure)

SWIVEL

No Swivel

Power Generation

Engines - Caterpillar C-15 with Drawworks

Generators -

SCR/VFD/DC/DC - Mechanical rig

ENHANCEMENTS

Iron roughneck - Apache 90-70

pipe Arm - Rostel industries Slant 7

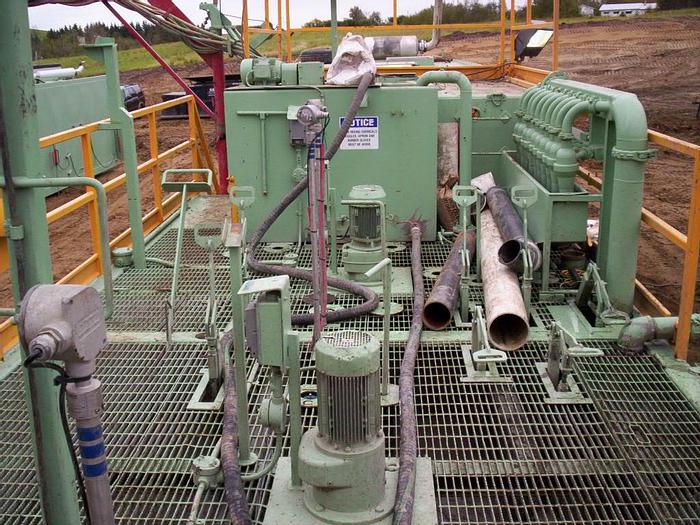

MUD SYSTEM

Mud Pumps - 1 ea Contenental Emesco F-650 (650H)

Reserve Mud Volume - 240 bbls

Pressure Rating - 5000 psi

Active Mud Volume - 600 bbls

Shale Shakers - 2 ea Brand King Cobra

mud Cleaner - N/A

Desander - N/A

Mud Gas Separate - Yes

Desilter - N/A

Centrifuge - N/A

WELL CONTROL

Annular BOP: Hydril 71/16" x 5000 psi

double ram BOP : hydril 71/16" x 5000psi

Last certification and upgrade: 2010-2011

Last operation: 2016
